Selector lever knob installation note

  1. Install the spring to the selector lever knob.
    CAUTION:
    • Install the spring so that it is stopped by the stopper.
    Fig 1: Spring To Selector Lever Knob
    G12233196Courtesy of MAZDA MOTORS CORP.
  2. Install the lock release button cover so that it engages with the hook of the selector lever knob.
    Fig 2: Lock Release Button Cover
    G12233197Courtesy of MAZDA MOTORS CORP.
  3. Install the selector lever knob to the selector lever component.

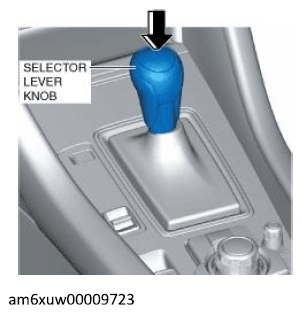

    Fig 3: Selector Lever Knob To Selector Lever Component
    G12233198Courtesy of MAZDA MOTORS CORP.
