Clock Spring Connector A Disconnect Note

  1. Pull out the clock spring connector A lock lever in the direction of arrow (1) shown in the figure below.

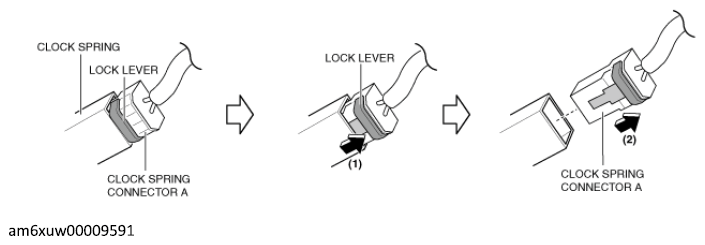

    Fig 1: Pulling Out Clock Spring Connector A Lock Lever In Direction
    G12233827Courtesy of MAZDA MOTORS CORP.
  2. Move the clock spring connector A in the direction of arrow (2) shown in the figure above to disconnect it.
