Symptom Troubleshooting - Automatic Transaxle (GW6A-El)
>>
Automatic Transaxle Control System Wiring Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Automatic Transaxle Control System Wiring Diagram

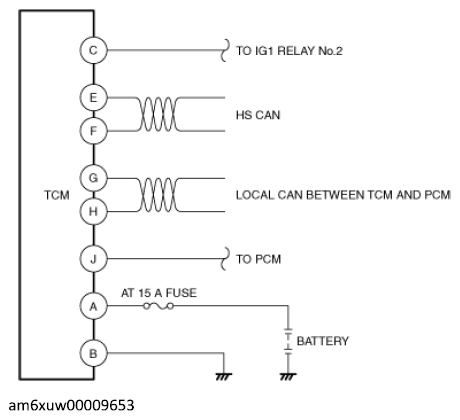

Fig 1: Automatic Transaxle Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
