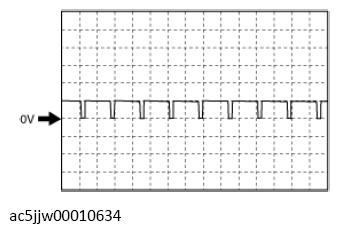

CKP (NE+) signal
 Courtesy of MAZDA MOTORS CORP.
|
PCM terminals
- 1E (+)-body ground (-)
Oscilloscope setting
- 3 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
- Idle (after warm up)
