DTC B1048-7B: Brake Fluid Level Sensor Circuit Malfunction [Front Body Control Module (FBCM)]: Notes

DTC B1048:7B [FRONT BODY CONTROL MODULE (FBCM)] DETECTION CONDITION AND POSSIBLE CAUSE

Description	Brake fluid level sensor circuit malfunction
Detection condition	Front body control module (FBCM) detected that the brake fluid level is less than MIN with the ignition switched ON (engine off or on).
Fail-safe	Not applicable

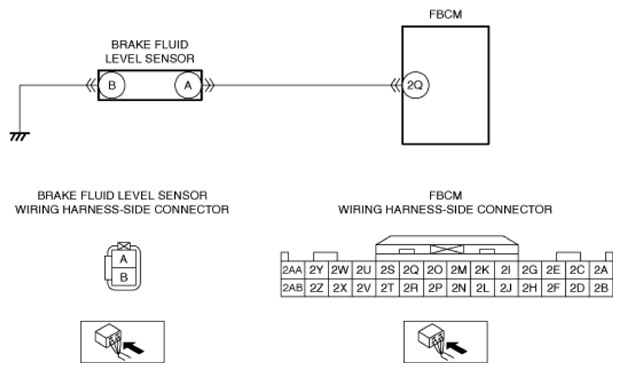

Possible cause	Insufficient brake fluid level Brake fluid level sensor connector or terminal malfunction Front body control module (FBCM) connector or terminal malfunction Short to ground in wiring harness between brake fluid level sensor terminal A and front body control module (FBCM) terminal 2Q Brake fluid level sensor malfunction Front body control module (FBCM) malfunction
Courtesy of MAZDA MOTORS CORP.
