DTC B1092-11: DRL Relay Circuit Malfunction [Front Body Control Module (FBCM)]: Notes
DTC B1092:11 [FRONT BODY CONTROL MODULE (FBCM)] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
DRL relay circuit malfunction |
| Detection condition |
- The front body control module (FBCM) detects a short to ground in the DRL relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- DRL relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

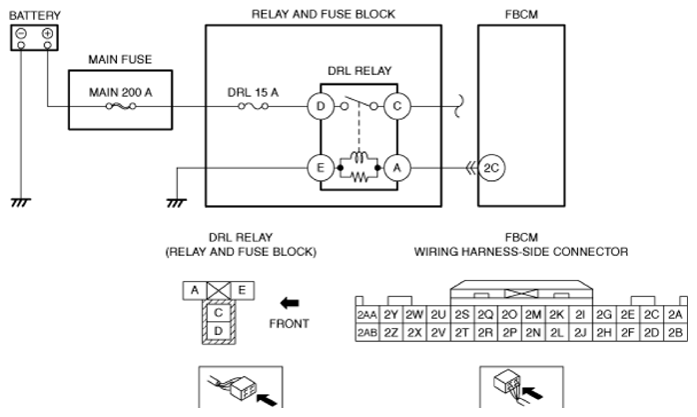

- Short to ground in wiring harness between DRL relay terminal A and front body control module (FBCM) terminal 2C
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
