DTC B109A-12: Headlight Hi Relay Circuit Malfunction [Front Body Control Module (FBCM)]: Notes
DTC B109A:12 [FRONT BODY CONTROL MODULE (FBCM)] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Headlight HI relay circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to power supply in the headlight HI relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Headlight HI relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

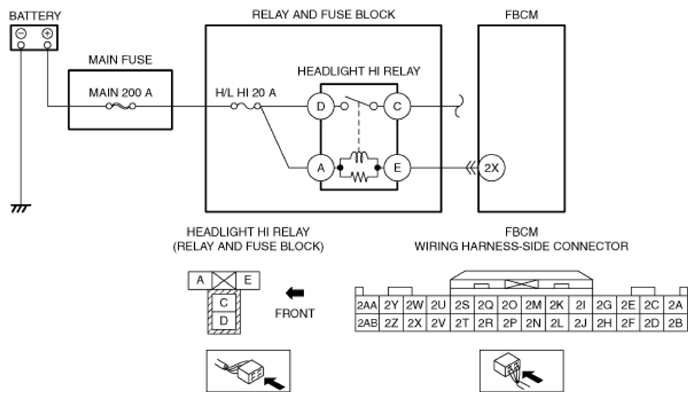

- Short to power supply in the wiring harness between headlight HI relay terminal E and front body control module (FBCM) terminal 2X
- Front body control module (FBCM) malfunction
|
