DTC B109A-14: Headlight Hi Relay Circuit Malfunction [Front Body Control Module (FBCM)]: Notes

DTC B109A:14 [FRONT BODY CONTROL MODULE (FBCM)] DETECTION CONDITION AND POSSIBLE CAUSE

Description	Headlight HI relay circuit malfunction
Detection condition	Front body control module (FBCM) detects an open circuit or short to ground in the headlight HI relay circuit with the ignition switched ON (engine off or on).
Fail-safe	Not applicable

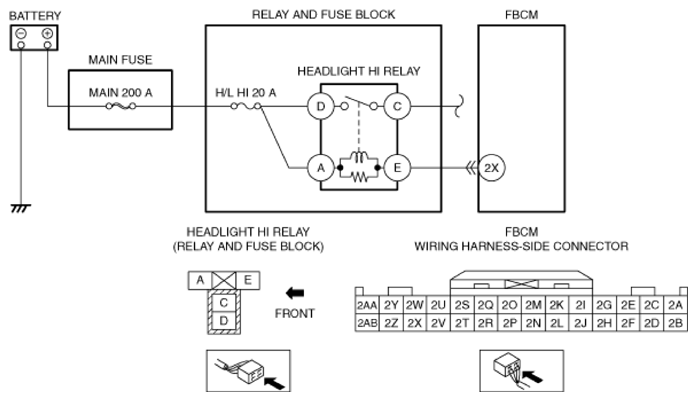

Possible cause	Headlight HI relay malfunction Front body control module (FBCM) connector or terminal malfunction Short to ground in wiring harness between headlight HI relay terminal E and front body control module (FBCM) terminal 2X Open circuit in wiring harness between headlight HI relay terminal E and front body control module (FBCM) terminal 2X Front body control module (FBCM) malfunction
