DTC B13D0-11: License Plate Light/Taillight Circuit Malfunction [Front Body Control Module (FBCM)]: Notes

DTC B13D0:11 [FRONT BODY CONTROL MODULE (FBCM)] DETECTION CONDITION AND POSSIBLE CAUSE

Description	License plate light/taillight circuit malfunction
Detection condition	Front body control module (FBCM) detects a short to ground in the license plate light/taillight circuit with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable
Possible cause	License plate light bulb (LH) malfunction License plate light bulb (RH) malfunction Front body control module (FBCM) connector or terminal malfunction Taillight (rear combination light) (LH) connector or terminal malfunction Taillight (rear combination light) (RH) connector or terminal malfunction Taillight (liftgate light) (LH) connector or terminal malfunction Taillight (liftgate light) (RH) connector or terminal malfunction License plate light (LH) connector or terminal malfunction License plate light (RH) connector or terminal malfunction Short to ground in wiring harness between the following terminals: Taillight (rear combination light) (LH) terminal C-Front body control module (FBCM) terminal 1I Taillight (rear combination light) (RH) terminal C-Front body control module (FBCM) terminal 1I Taillight (liftgate light) (LH) terminal A-Front body control module (FBCM) terminal 1I Taillight (liftgate light) (RH) terminal A-Front body control module (FBCM) terminal 1I License plate light (LH) terminal A-Front body control module (FBCM) terminal 1I (until 2018MY) License plate light (RH) terminal A-Front body control module (FBCM) terminal 1I Taillight (rear combination light) (LH) malfunction Taillight (rear combination light) (RH) malfunction Taillight (liftgate light) (LH) malfunction Taillight (liftgate light) (RH) malfunction Front body control module (FBCM) malfunction

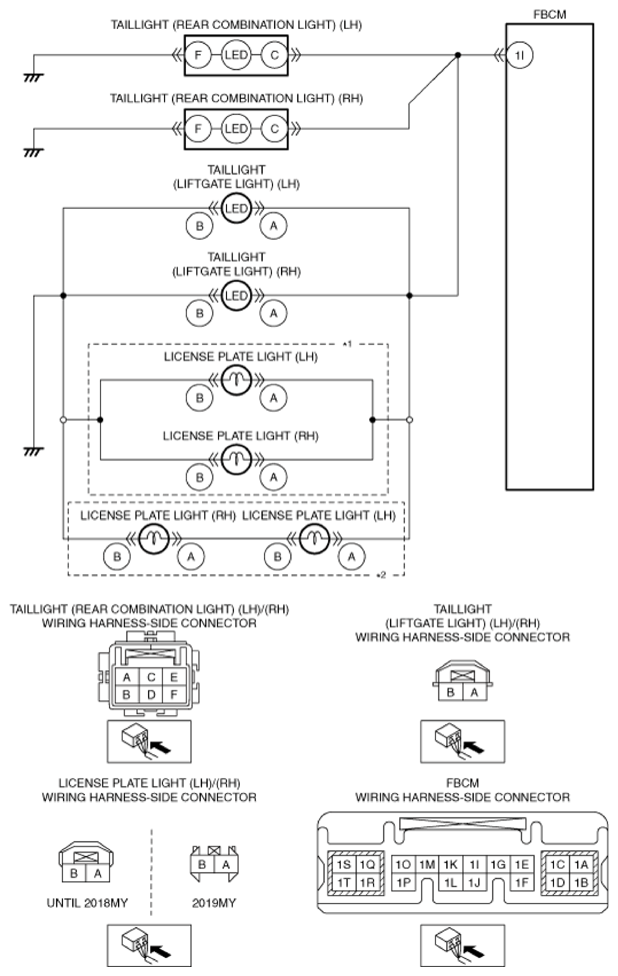

Courtesy of MAZDA MOTORS CORP.

*1: Until 2018MY

*2: 2019MY
