DTC B13FE-12: Headlight Lo Relay No. 2 Circuit Malfunction [Front Body Control Module (FBCM)]: Notes
DTC B13FE:12 [FRONT BODY CONTROL MODULE (FBCM)] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Headlight LO relay No. 2 circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to power supply in the headlight LO relay No. 2 circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Headlight LO relay No. 2 malfunction
- Front body control module (FBCM) connector or terminal malfunction

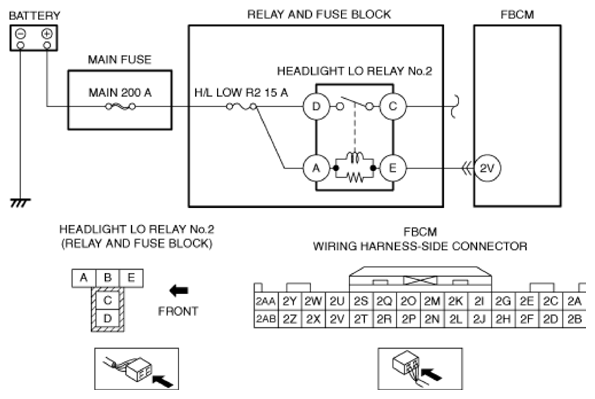

- Short to power supply in the wiring harness between headlight LO relay No. 2 terminal E and front body control module (FBCM) terminal 2V
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
