DTC B1D07-11: Turn Light (RH) Circuit Malfunction [Front Body Control Module (FBCM)]: Notes

Description	Turn light (RH) circuit malfunction
Detection condition	Front body control module (FBCM) detects a short to ground in the turn light (RH) circuit with the ignition switched ON (engine off or on).
Fail-safe	Not applicable
Possible cause	Front body control module (FBCM) connector or terminal malfunction Front turn light bulb (RH) malfunction (bulb type) Front combination light (RH) connector or terminal malfunction Short to ground in wiring harness between front combination light (RH) terminal E and front body control module (FBCM) terminal 1G Front turn light malfunction (LED type) Rear turn light bulb (RH) malfunction Rear turn light (RH) connector or terminal malfunction Short to ground in wiring harness between rear combination light (RH) terminal A and front body control module (FBCM) terminal 1E Power outer mirror (RH) connector or terminal malfunction Side turn light (RH) malfunction Short to ground in wiring harness between power outer mirror (RH) terminal E and front body control module (FBCM) terminal 1F Front body control module (FBCM) malfunction

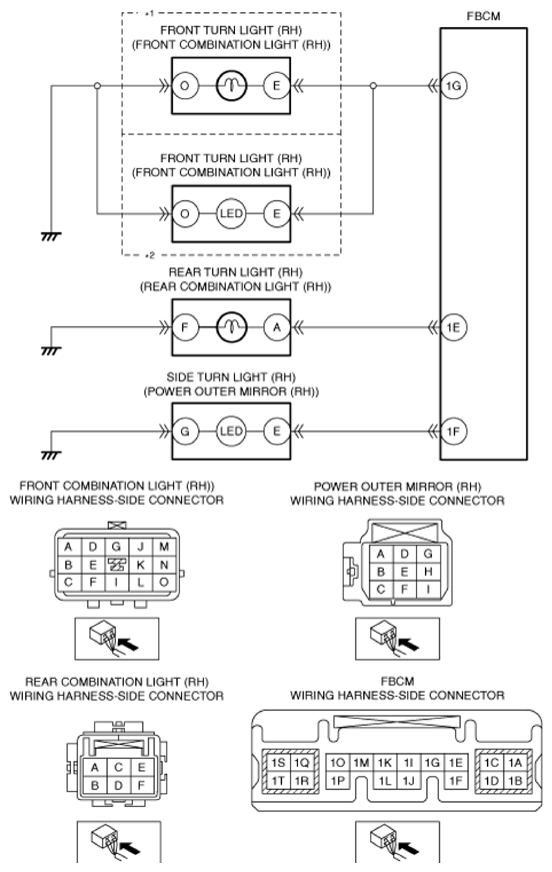

Courtesy of MAZDA MOTORS CORP.

*1: Without adaptive front lighting system (AFS) control module

*2 With adaptive front lighting system (AFS) control module
