DTC B126A-62: Front Door Lock-Link Switch (LH) Circuit Malfunction [Power Liftgate (Plug) Control Module]: Notes

DTC B126A:62 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Front door lock-link switch (LH) circuit malfunction
Detection condition	Power liftgate (PLUG) control module detects an open circuit in the door lock-link switch (LH) circuit for 1 s or more.
Fail-safe	Stops the power liftgate (PLUG) system operation.

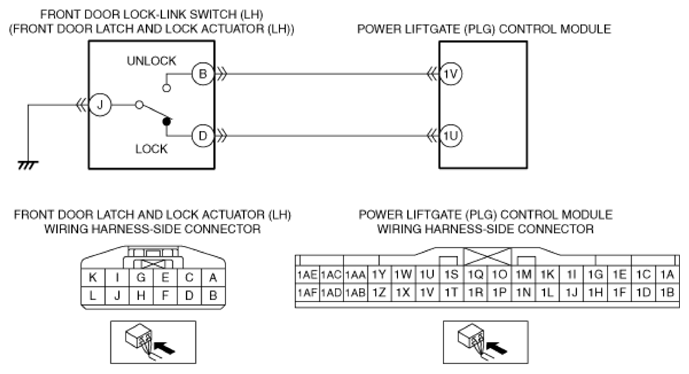

Possible cause	Front door latch and lock actuator (LH) connector or terminal malfunction Open circuit in wiring harness between front door latch and lock actuator (LH) terminal J and body ground Front door lock-link switch (LH) malfunction Power liftgate (PLUG) control module connector or terminal malfunction Open circuit in wiring harness between the following terminals: Front door latch and lock actuator (LH) terminal D-Power liftgate (PLUG) control module terminal 1U Front door latch and lock actuator (LH) terminal B-Power liftgate (PLUG) control module terminal 1V Power liftgate (PLUG) control module malfunction
Courtesy of MAZDA MOTORS CORP.
