DTC B1454-13: Power Liftgate (Plug) Touch Sensor (LH) Circuit Malfunction [Power Liftgate (Plug) Control Module]: Notes

DTC B1454:13 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Power liftgate (PLUG) touch sensor (LH) circuit malfunction
Detection condition	Power liftgate (PLUG) control module detected an open circuit in the power liftgate (PLUG) touch sensor (LH) circuit for 0.1 s or more.
Fail-safe	Stops the power liftgate (PLUG) system operation.

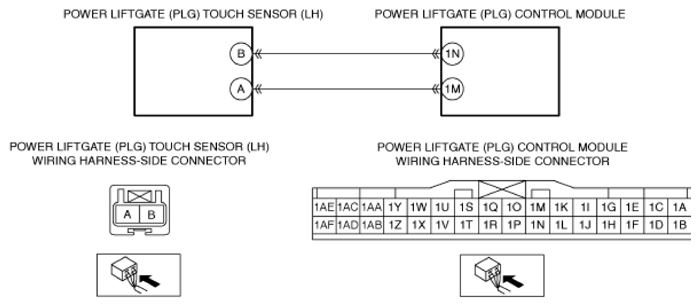

Possible cause	Power liftgate (PLUG) touch sensor (LH) connector or terminal malfunction Power liftgate (PLUG) control module connector or terminal malfunction Open circuit in wiring harness between the following terminals: Power liftgate (PLUG) touch sensor (LH) terminal B-Power liftgate (PLUG) control module terminal 1N Power liftgate (PLUG) touch sensor (LH) terminal A-Power liftgate (PLUG) control module terminal 1M Power liftgate (PLUG) touch sensor (LH) malfunction Power liftgate (PLUG) control module malfunction
Courtesy of MAZDA MOTORS CORP.
