DTC P0123-00: TP Sensor No. 1 Circuit High Input: Notes
DTC P0123:00 (PCM, SKYACTIV-G 2.5T) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0123:00 |
TP sensor No. 1 circuit high input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No. 1 voltage at the PCM terminal 1AZ is above 4.9 V, the PCM determines that the TP sensor No. 1 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Restricts the upper limit of the engine speed.
- PCM restricts engine torque.
|
| POSSIBLE CAUSE |
- Throttle body connector or terminals malfunction
- PCM connector or terminals malfunction
- TP sensor No. 1 malfunction
- Short to power supply in wiring harness between throttle body terminal F and PCM terminal 1AZ
- Open circuit in wiring harness between the following terminals:
- Throttle body terminal E-PCM terminal 1CB
- Throttle body terminal F-PCM terminal 1AZ
- Throttle body terminal C-PCM terminal 1BV
- PCM malfunction
|

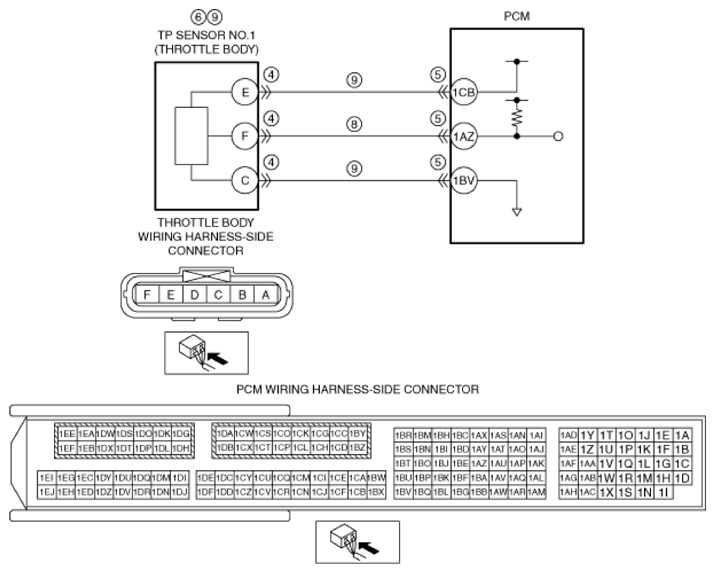

 Courtesy of MAZDA MOTORS CORP.
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
