DTC B0094-11/B0094-13/B0094-87/B0094-96: Driver-Side Crash Zone Sensor Circuit [SAS Control Module (Standard Deployment Control System)]: Notes

DTC B0094:11/B0094:13/B0094:87/B0094:96 - SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	B0094:11:Driver-side crash zone sensor circuit short to body ground B0094:13:Driver-side crash zone sensor circuit open circuit or short to power supply B0094:87:Signal reception error from driver-side crash zone sensor B0094:96:Driver-side crash zone sensor internal malfunction
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the driver-side crash zone sensor and SAS control module has a malfunction Driver-side crash zone sensor has a malfunction
Fail-safe	Not applicable

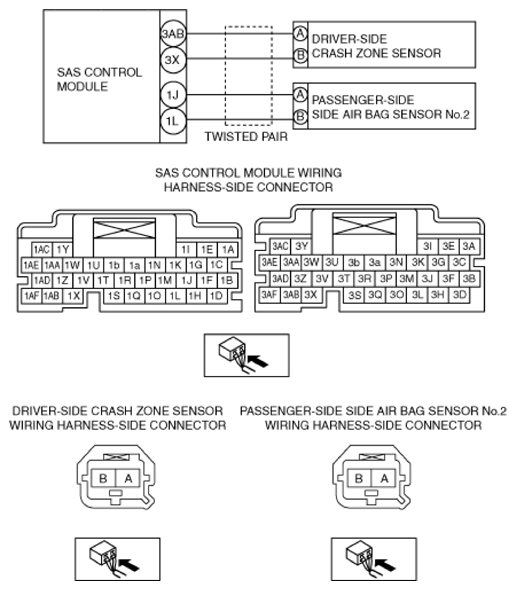

Possible cause	Driver-side crash zone sensor connector malfunction Short circuit to power supply or body ground in wiring harness between the driver-side crash zone sensor and SAS control module Open circuit in the wiring harness between the driver-side crash zone sensor and SAS control module Short circuit to power supply or body ground in wiring harness between the passenger-side side air bag sensor No. 2 and SAS control module Driver-side crash zone sensor malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
