DTC B10FD-11/B10FD-13/B10FD-87/B10FD-96: Driver-Side Side Air Bag Sensor No. 1 Circuit [SAS Control Module (Standard Deployment Control System)]: Notes

DTC B10FD:11/B10FD:13/B10FD:87/B10FD:96 - SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	B10FD:11: Driver-side side air bag sensor No. 1 circuit short to body ground B10FD:13: Driver-side side air bag sensor No. 1 circuit open circuit or short to power supply B10FD:87: Signal reception error from driver-side side air bag sensor No. 1 B10FD:96: Driver-side side air bag sensor No. 1 internal malfunction
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the driver-side side air bag sensor No. 1 and SAS control module has a malfunction Driver-side side air bag sensor No. 1 has a malfunction
Fail-safe	Not applicable

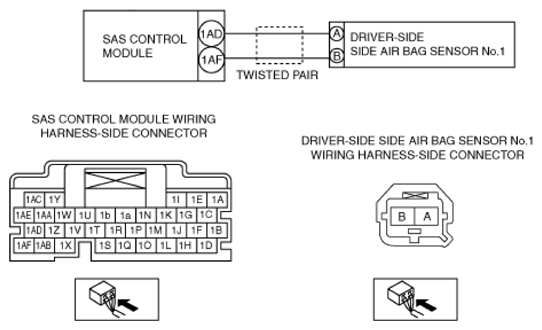

Possible cause	Driver-side side air bag sensor No. 1 connector malfunction Short circuit to power supply or body ground in the wiring harness between the driver-side side air bag sensor No. 1 and SAS control module Open circuit in the wiring harness between the driver-side side air bag sensor No. 1 and SAS control module Driver-side side air bag sensor No. 1 malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
