DTC B1126-11/B1126-12/B1126-13/B1126-19/B1126-1A: Driver-Side Side Air Bag Module Circuit [SAS Control Module (Standard Deployment Control System)]: Notes

DTC B1126:11/B1126:12/B1126:13/B1126:19/B1126:1A - SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

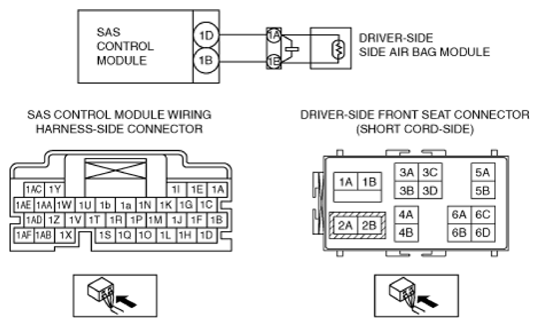

System malfunction location	B1126:11: Driver-side side air bag module circuit short to body ground B1126:12: Driver-side side air bag module circuit short to power supply B1126:13: Driver-side side air bag module circuit open circuit or resistance high B1126:19: Short circuit to driver-side side air bag module and other air bag module circuits B1126:1A: Driver-side side air bag module circuit resistance low
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 0.81-9.85 ohms is detected in driver-side side air bag module circuit Wiring harness between the driver-side side air bag module and SAS control module has a malfunction
Fail-safe	Not applicable
Possible cause	Driver-side side air bag module connector malfunction Short circuit to power supply or body ground in the wiring harness between the driver-side side air bag module and SAS control module Open circuit in the wiring harness between the driver-side side air bag module and SAS control module Short circuit to each other in the wiring harness between the driver-side side air bag module and SAS control module Short circuit to other air bag module circuits in the wiring harness between the driver-side side air bag module and SAS control module Driver-side side air bag module malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
