DTC B1413-11/B1413-13/B1413-87/B1413-96: Driver-Side Crash Zone Sensor Circuit [SAS Control Module (Standard Deployment Control System)]: Notes

DTC B1413:11/B1413:13/B1413:87/B1413:96 - SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	B1413:11:Driver-side crash zone sensor circuit short to body ground or power supply B1413:13:Driver-side crash zone sensor circuit open circuit or short to power supply B1413:87:Signal reception error from driver-side crash zone sensor B1413:96:Driver-side crash zone sensor internal malfunction
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the driver-side crash zone sensor and SAS control module has a malfunction Driver-side crash zone sensor has a malfunction
Fail-safe	Not applicable

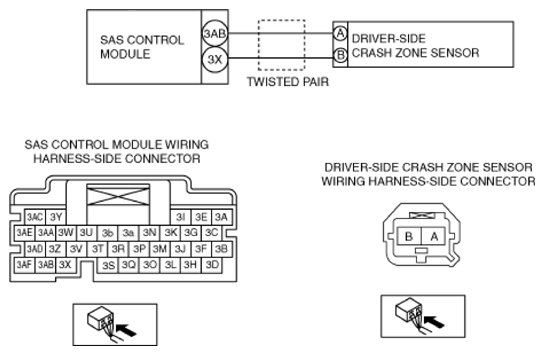

Possible cause	Driver-side crash zone sensor connector malfunction Open circuit in the wiring harness between the following terminals: SAS control module terminal 3AB-driver-side crash zone sensor terminal A SAS control module terminal 3X-driver-side crash zone sensor terminal B Short circuit to body ground in the wiring harness between the following terminals: SAS control module terminal 3AB-driver-side crash zone sensor terminal A SAS control module terminal 3X-driver-side crash zone sensor terminal B Short circuit to power supply in the wiring harness between the following terminals: SAS control module terminal 3AB-driver-side crash zone sensor terminal A SAS control module terminal 3X-driver-side crash zone sensor terminal B Driver-side crash zone sensor malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
