DTC B0011-11/B0011-12/B0011-13/B0011-19/B0011-1A: Passenger-Side Air Bag Module (Inflator No. 2) Circuit [SAS Control Module (Two-Step Deployment Control System)]: Notes

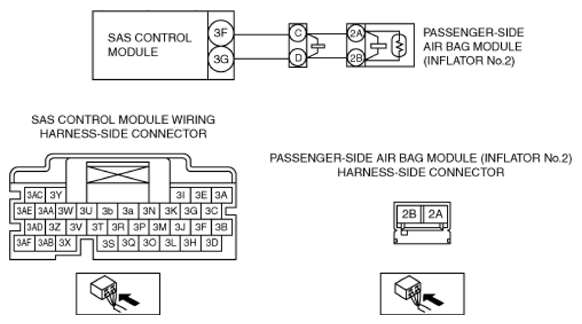

DTC B0011:11/B0011:12/B0011:13/B0011:19/B0011:1A - SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
- B0011:11:Passenger-side air bag module (inflator No. 2) circuit short to body ground
- B0011:12:Passenger-side air bag module (inflator No. 2) circuit short to power supply
- B0011:13:Passenger-side air bag module (inflator No. 2) circuit open circuit or resistance high
- B0011:19:Short circuit to passenger-side air bag module (inflator No. 2) and other air bag module circuits
- B0011:1A:Passenger-side air bag module (inflator No. 2) circuit resistance low
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Resistance other than 0.81-6.42 ohms detected in the passenger-side air bag module (inflator No. 2) circuit
- Wiring harness between passenger-side air bag module (inflator No. 2) and SAS control module has malfunction
|
| Fail-safe |
Not applicable |
| Possible cause |
- Passenger-side air bag module (inflator No. 2) connector malfunction
- Short circuit to power supply or body ground in the wiring harness between the passenger-side air bag module (inflator No. 2) and SAS control module
- Open circuit in the wiring harness between the passenger-side air bag module (inflator No. 2) and SAS control module
- Short circuit to each other in the wiring harness between the passenger-side air bag module (inflator No. 2) and SAS control module
- Short circuit to other air bag module circuits in the wiring harness between the passenger-side air bag module (inflator No. 2) and SAS control module
- Passenger-side air bag module (inflator No. 2) malfunction
- SAS control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
