DTC B00D5-01/B00D5-29: Pad Indicator Circuit [SAS Control Module (Two-Step Deployment Control System)]: Notes
DTC B00D5:01/B00D5:29 - SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
- B00D5:01:PAD indicator circuit open circuit or short to power supply
- B00D5:29:Communication error with instrument cluster (PAD indicator light status mis-matched)
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Malfunction in PAD indicator circuit
- PAD indicator light illumination request sent from SAS control module does not correspond to PAD indicator light illumination status in indicator unit
|
| Fail-safe |
Not applicable |
| Possible cause |
- Indicator unit malfunction
- Instrument cluster malfunction
- Indicator unit connector malfunction
- Instrument cluster connector malfunction
- SAS control module connector malfunction

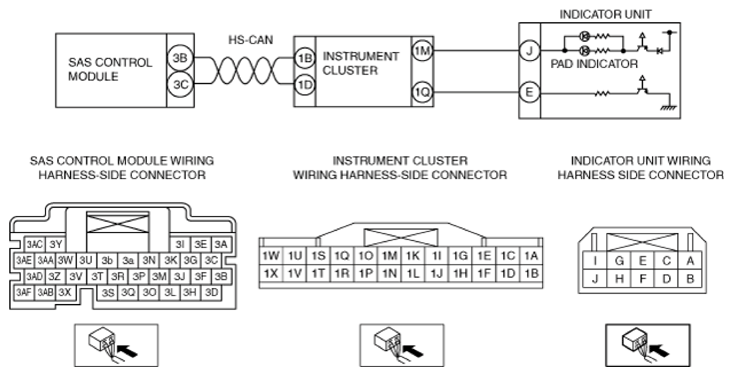

- Short circuit to power supply in the wiring harness between Instrument cluster and indicator unit
- Open circuit in the wiring harness between Instrument cluster and indicator unit
- SAS control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
