DTC B10FE-11/B10FE-13/B10FE-87/B10FE-96: Passenger-Side Side Air Bag Sensor No. 1 Circuit [SAS Control Module (Two-Step Deployment Control System)]: Notes

DTC B10FE:11/B10FE:13/B10FE:87/B10FE:96 - SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	B10FE:11: Passenger-side side air bag sensor No. 1 circuit short to body ground B10FE:13: Passenger-side side air bag sensor No. 1 circuit open circuit or short to power supply B10FE:87: Signal reception error from passenger-side side air bag sensor No. 1 B10FE:96: Passenger-side side air bag sensor No. 1 internal malfunction
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the passenger-side side air bag sensor No. 1 and SAS control module has a malfunction Passenger-side side air bag sensor No. 1 has a malfunction
Fail-safe	Not applicable

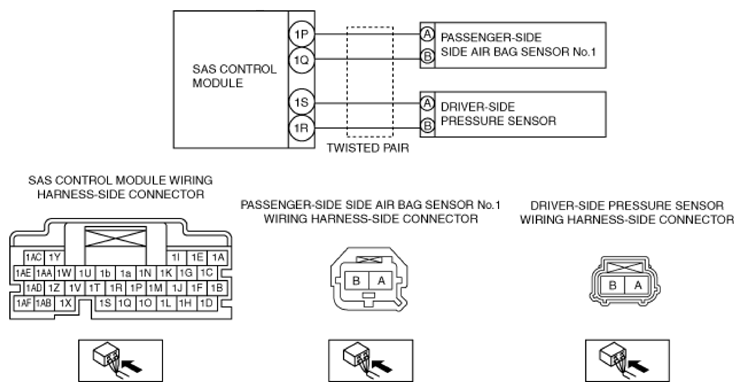

Possible cause	Passenger-side side air bag sensor No. 1 connector malfunction Short circuit to power supply or body ground in the wiring harness between the passenger-side side air bag sensor No. 1 and SAS control module Open circuit in the wiring harness between the passenger-side side air bag sensor No. 1 and SAS control module Short circuit to power supply or body ground in wiring harness between the driver-side pressure sensor and SAS control module Passenger-side side air bag sensor No. 1 malfunction SAS control module malfunction

Courtesy of MAZDA MOTORS CORP.
