DTC U0127-00: Communication Error To Start Stop Unit [Instrument Cluster (Direct TPMS (Without TPMS Set Switch))]: Notes

DTC U0127:00 [INSTRUMENT CLUSTER (DIRECT TPMS (WITHOUT TPMS SET SWITCH))] DETECTION CONDITION AND POSSIBLE CAUSE

DTC	U0127:00	Communication error to start stop unit
DETECTION CONDITION		Communication error to start stop unit is detected.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [INSTRUMENT CLUSTER (DIRECT TPMS (WITHOUT TPMS SET SWITCH))] .)

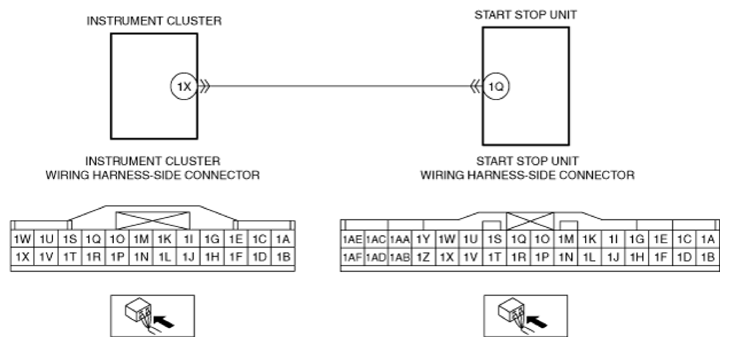

POSSIBLE CAUSE		Start stop unit connector or terminal malfunction Instrument cluster connector or terminal malfunction Short to ground in wiring harness between instrument cluster terminal 1X and start stop unit terminal 1Q Short to power supply in wiring harness between instrument cluster terminal 1X and start stop unit terminal 1Q Open circuit in wiring harness between instrument cluster terminal 1X and start stop unit terminal 1Q Start stop unit malfunction Instrument cluster malfunction
Courtesy of MAZDA MOTORS CORP.
