DTC P0132-00: A/F Sensor Circuit High Input
>>
System Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

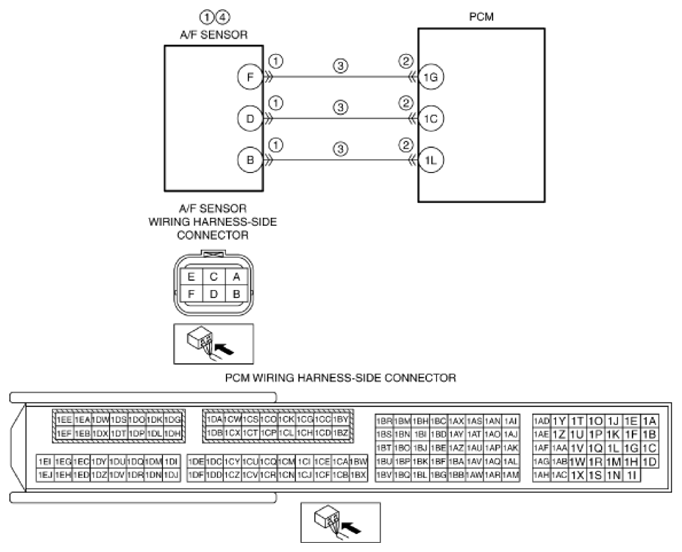

System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
