Clock Spring Adjustment [Standard Deployment Control System]

Set the front wheels straight ahead.
CAUTION:
- The clock spring will break if over-wound. Do not forcibly turn the clock spring.

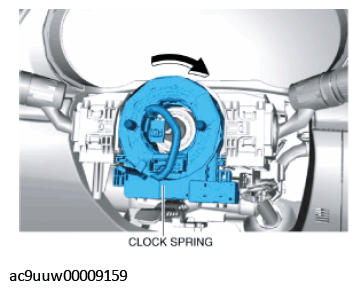

Turn the clock spring clockwise until it stops.

Courtesy of MAZDA MOTORS CORP.

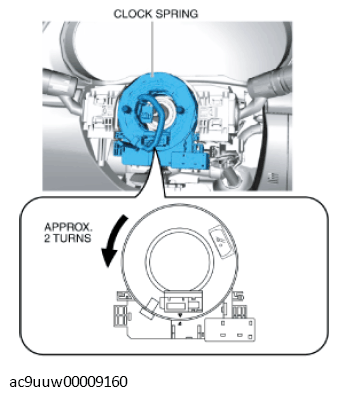

From the stopped position, turn the clock spring counterclockwise approx. 2 turns.

Courtesy of MAZDA MOTORS CORP.

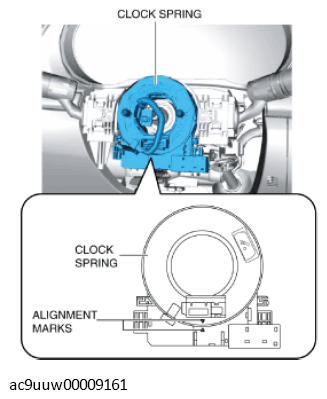

Align the mark on the clock spring with the mark on the outer housing.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
NOTE:

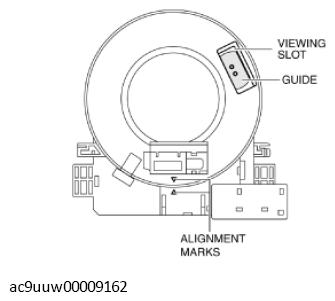

- After adjusting the alignment marks, the guides can be verified in the viewing slots shown in the figure.
