Driver-Side Air Bag Module Removal [Standard Deployment Control System]

WARNING:

• Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

NOTE:

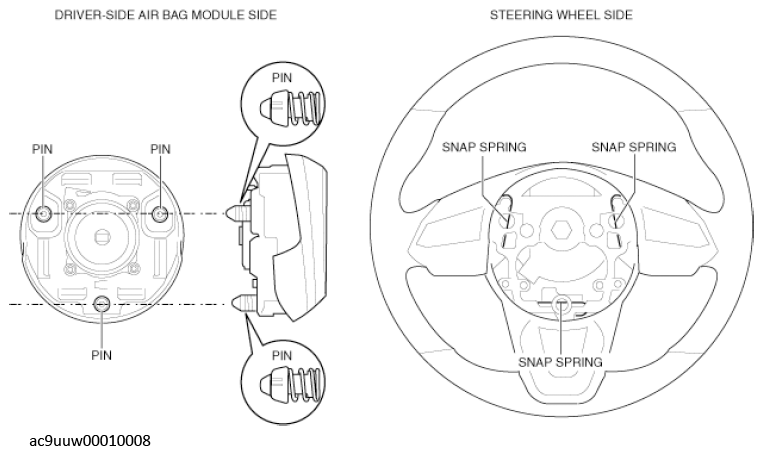

• The driver-side air bag module engages with the pins of the driver-side air bag module and the snap springs of the steering wheel.

Courtesy of MAZDA MOTORS CORP.

1. Switch the ignition off.
2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

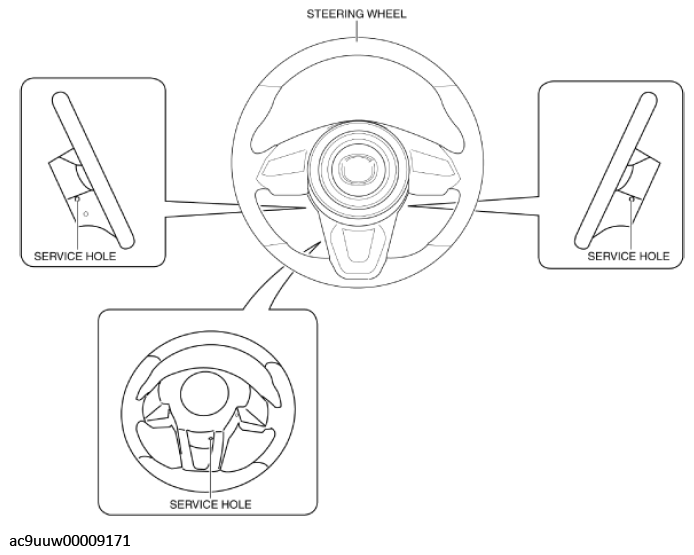

3. Verify the service hole on the back side of the steering wheel shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

4. Insert the tool into the service hole.
   CAUTION:

   • Be careful not to damage the wiring harness inside the steering wheel when inserting the tool. Otherwise, the wiring harness inside the steering wheel could be damaged by the inserted tool.


   Recommended tool
   • HEX driver (diam. 6)

   Courtesy of MAZDA MOTORS CORP.

5. Press the snap springs to disengage them from the pins using the inserted tool.

   Courtesy of MAZDA MOTORS CORP.

   CAUTION:

   • Hold the driver-side air bag module when releasing its securement. Otherwise, it may fall off and be damaged.

   Courtesy of MAZDA MOTORS CORP.

6. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

   Courtesy of MAZDA MOTORS CORP.

7. Disconnect the driver-side air bag module connector.
8. Disconnect the horn switch connector.
9. Remove the driver-side air bag module.
