DTC U3006-13; Power Supply Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Power supply circuit malfunction |
| Detection condition |
- Power liftgate (PLG) control module detects an open circuit in the power supply circuit for 1 s or more with the ignition switched off.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |
- DTCs are stored in the PCM.
- Battery malfunction
- Generator malfunction
- Power liftgate (PLG) control module connector or terminal malfunction
- Power liftgate (PLG) control module power supply circuit malfunction

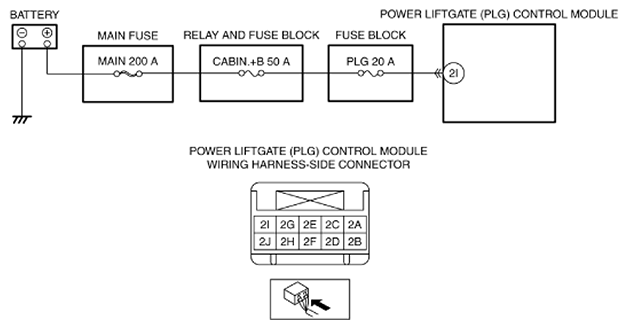

- Short to ground in wiring harness between MAIN 200 A fuse and power liftgate (PLG) control module terminal 2I
- PLG 20 A fuse malfunction
- CABIN.+B 50 A fuse malfunction
- Open circuit in wiring harness between battery positive terminal and power liftgate (PLG) control module terminal 2I
- Power liftgate (PLG) control module malfunction
|
|
|
