Refrigerant Pressure Sensor Inspection

Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION .)
Verify the high-pressure side reading of the manifold gauge.
Measure the terminal voltage at PCM terminal 2V, 2W and 2Y.

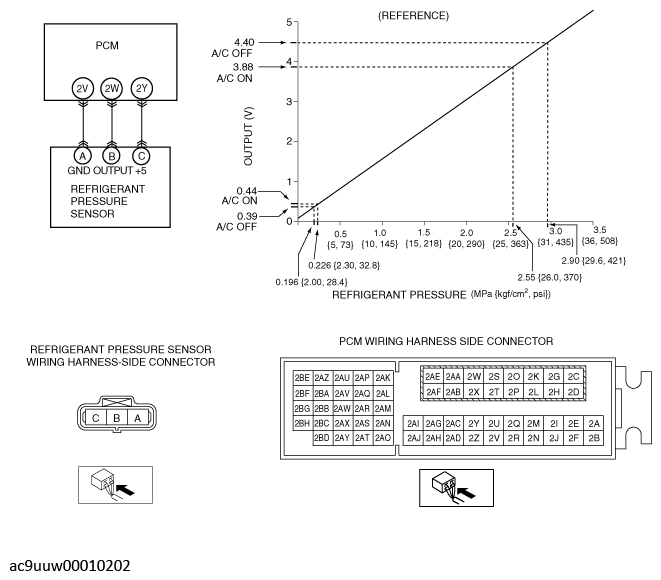

Using the graph below, measure and verify the terminal voltages at 2W.
Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION .)
- Terminal 2Y: Approx. 5 V (Ignition switch ON)
- Terminal 2V: 1.0 V or less
  - If each voltage is not normal, inspect the related wiring harness.
  - If there is any malfunction, replace the related wiring harness.
  - If the wiring harness is normal, replace the refrigerant pressure sensor. (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION .)
Courtesy of MAZDA MOTORS CORP.
