Resistance Inspection
- Disconnect the negative battery terminal. (See REQUIRED PROCEDURE AFTER NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the ECT sensor No. 2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)

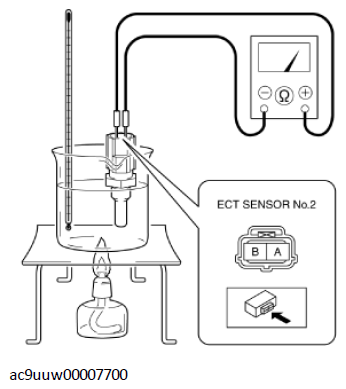

- Place the ECT sensor No. 2 in water with a thermometer, and heat the water gradually.
- Measure the resistance between ECT sensor No. 2 terminals A and B.
- If not as specified, replace the ECT sensor No. 2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
