Power Outer Mirror Inspection: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

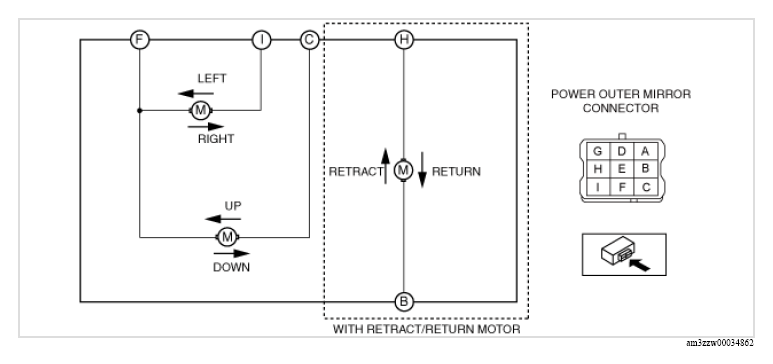

- Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
- If the power outer mirror does not operate as indicated in the table, replace the power outer mirror.
BATTERY POSITIVE VOLTAGE CONNECT TERMINAL DESCRIPTION
| Mirror operation direction | Battery positive voltage connect terminal | Ground connect terminal |
|---|---|---|
| Up | C | F |
| Down | F | C |
| Left | I | F |
| Right | F | I |
| Retract | B | H |
| Return | H | B |
