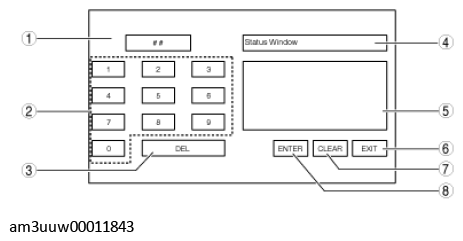

Diagnostic assist code input screen

G11275570Courtesy of MAZDA MOTORS CORP.
DIAGNOSTIC ASSIST CODE INPUT PROCEDURE

No. Name Content/function
1 Diagnostic assist code display screen Displays the diagnostic assist code.
2 Diagnostic assist code input switch Inputs the diagnostic assist code.
3 DEL switch Clears the diagnostic assist code.
4 Diagnostic content display screen Displays the diagnostic content.
5 Diagnostic results display screen Displays the diagnostic results.
6 EXIT switch (1)/END switch (2) Cancels the diagnostic assist function./Stops the diagnostic assist function being performed.
7 CLEAR switch Clears the diagnostic result display.
8 ENTER switch Transfers to the diagnostic assist function.
(1) Displayed while the diagnostic assist function is not performed.

(2) Displayed while the diagnostic assist function is being performed.
