With Coolant Control Valve

DTC P061F:00 DETECTION CONDITION AND POSSIBLE CAUSE

DTC P061F:00	Internal control module throttle valve actuator controller performance problem
DETECTION CONDITION	When any of the following conditions is met: Start stop unit internal malfunction CAN communication line malfunction between start stop unit and PCM PCM internal malfunction Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

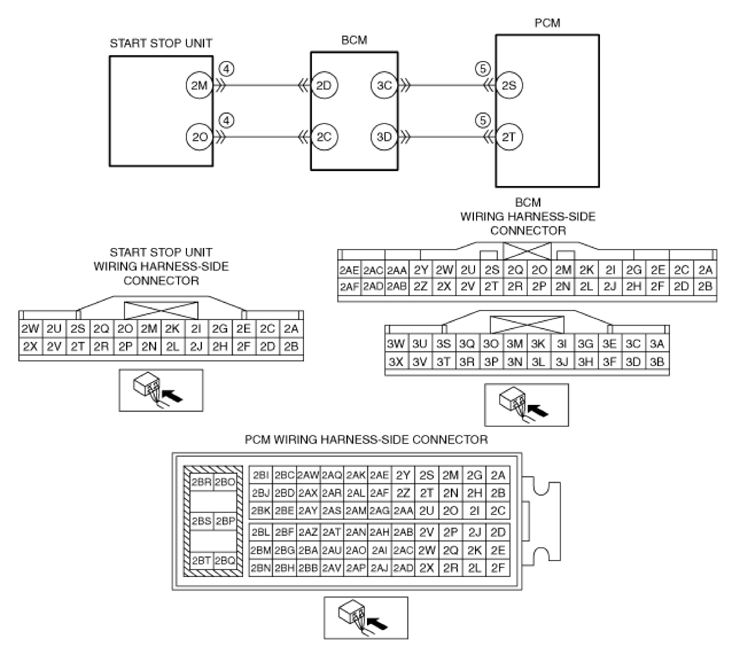

POSSIBLE CAUSE	CAN communication line malfunction between start stop unit and PCM Start stop unit terminal 2M-Body control module (BCM) terminal 2D Start stop unit terminal 2O-Body control module (BCM) terminal 2C Body control module (BCM) terminal 3C-PCM terminal 2S Body control module (BCM) terminal 3D-PCM terminal 2T Start stop unit connector or terminals malfunction PCM connector or terminals malfunction Start stop unit malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
