Side Air Bag Module

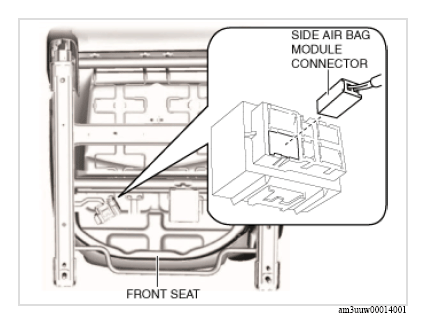

  1. Disconnect the front seat connector.
    G13151255Courtesy of MAZDA MOTORS CORP.

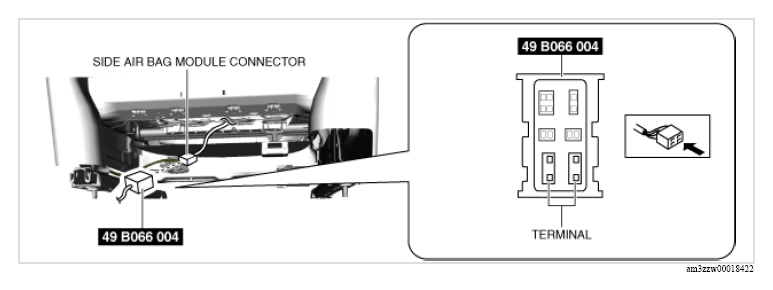

  2. Connect the SST (Adapter harness) to the front seat connector as shown in the figure.
    G13151256Courtesy of MAZDA MOTORS CORP.

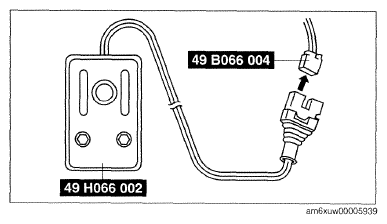

  3. Connect the SST (Deployment tool) to the SST (Adapter harness).
    G09787166Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  5. Verify that the red lamp on the SST (Deployment tool) is illuminated.
  6. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
  7. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.
    G13151250Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  8. Disconnect the SST (Deployment tool) from the SST (Adapter harness).
