Clock Spring Connector A Disconnect Note

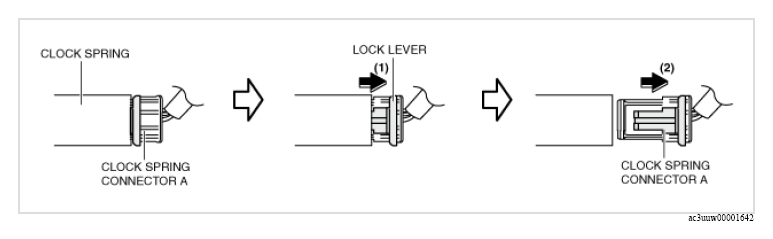

  1. Pull out the clock spring connector A lock lever in the direction of arrow (1) shown in the figure.
    G13151326Courtesy of MAZDA MOTORS CORP.
  2. Move the clock spring connector A in the direction of arrow (2) shown in the figure to disconnect it.
