Clock Spring Removal/Installation (Two-Step Deployment Control System): Notes

WARNING:

Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS (TWO-STEP DEPLOYMENT CONTROL SYSTEM) .) (See AIR BAG SYSTEM SERVICE CAUTIONS (TWO-STEP DEPLOYMENT CONTROL SYSTEM) .)

Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL (TWO-STEP DEPLOYMENT CONTROL SYSTEM) .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM) .)
2. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
3. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)

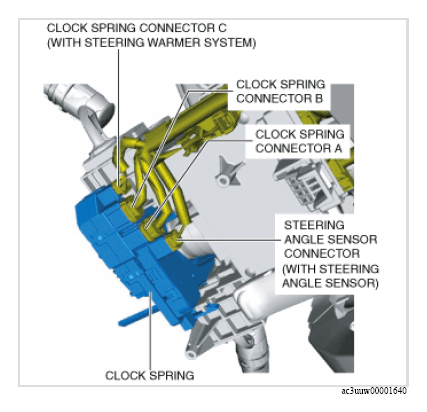

Disconnect the clock spring connector A. (See Clock Spring Connector A Disconnect Note .)

Courtesy of MAZDA MOTORS CORP.
Disconnect the clock spring connector B.
Disconnect the clock spring connector C. (with steering warmer system)
Disconnect the steering angle sensor connector. (with steering angle sensor)

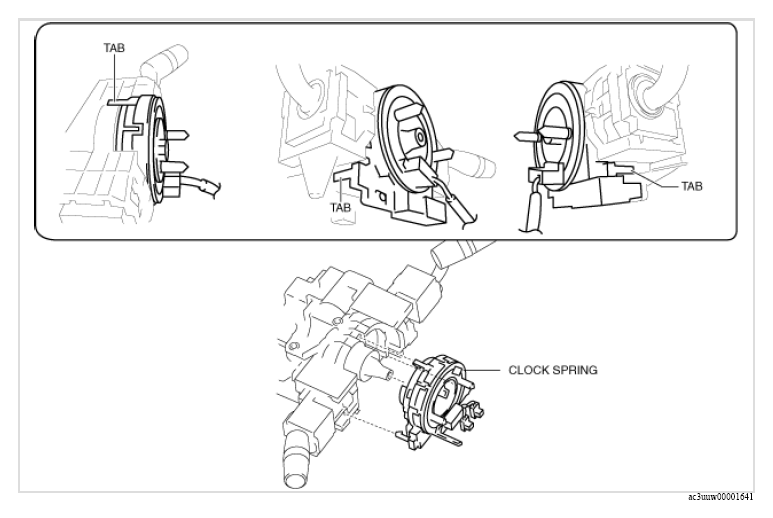

Remove the tab direction of the arrow shown in the figure and remove the clock spring.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See CLOCK SPRING INSTALLATION NOTE .)
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic. (See FLOWCHART (SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)) .)
