DTC B00C1-93: Occupant Classification Sensor Communication Error (Airbag (Two-Step Deployment Control System)): Notes

DTC B00C1:93 (SAS CONTROL MODULE - TWO-STEP DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Occupant classification sensor communication error
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Occupant classification sensor malfunction is detected
Fail-safe	-

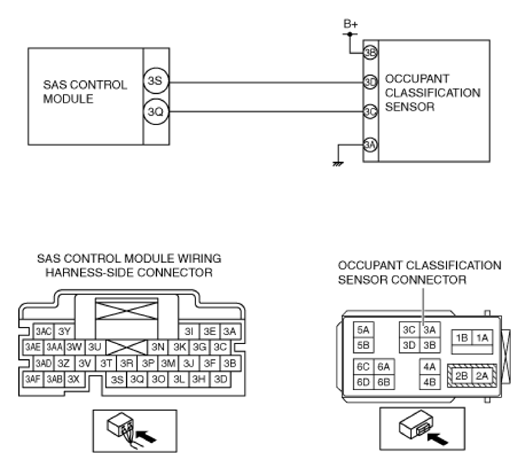

Possible cause	Occupant classification sensor connector malfunction Open circuit or short to ground or short to power supply in wiring harness between SAS control module and occupant classification sensor Occupant classification sensor malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
