DTC B1011-95: SAS Control Module Connectors Are Poorly Connected (Airbag (Two-Step Deployment Control System)): Notes

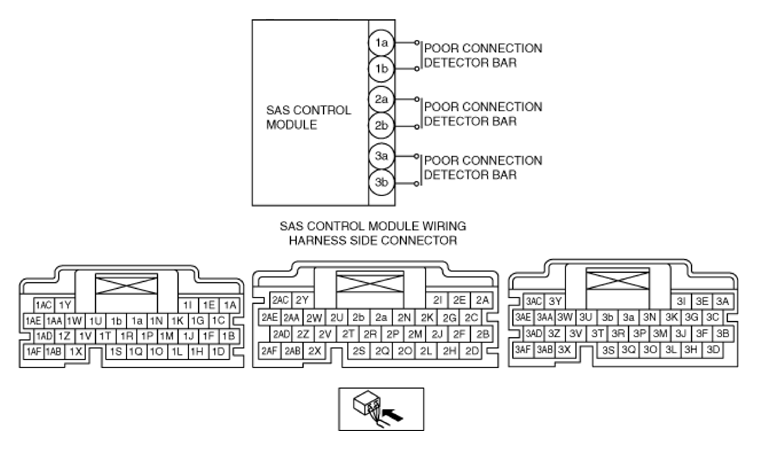

DTC B1011:95 (SAS CONTROL MODULE - TWO-STEP DEPLOYMENT CONTROL SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	SAS control module connectors are poorly connected
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. No continuity between poorly connected detector bar terminals of the SAS control module, or the measurement value is out of the normal range even though there is continuity
Fail-safe function	Not applicable
Possible cause	SAS control module connectors are poorly connected SAS control module connector cover malfunction SAS control module connector malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
