Clip Removal Note

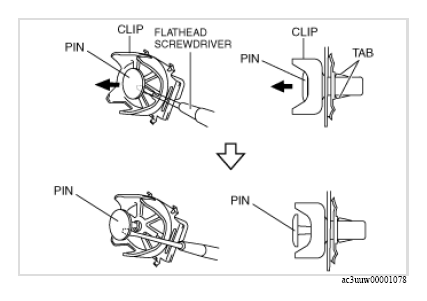

  1. Pull out the pin with flathead screwdriver as shown in the figure.
    G13151336Courtesy of MAZDA MOTORS CORP.

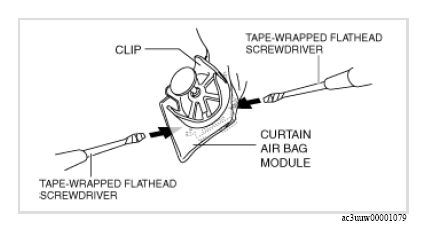

  2. Insert a tape-wrapped flathead screwdriver into the positions of the arrows shown in the figure.
    G13151337Courtesy of MAZDA MOTORS CORP.

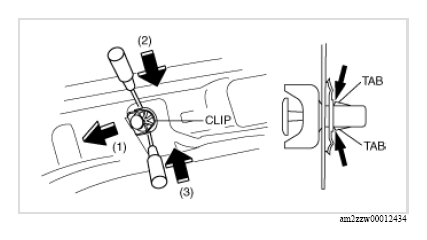

  3. While pulling the curtain air bag in the direction of the arrow shown in the figure (1), detach tabs by prying with a flathead screwdriver in the direction of the arrow (2) (3).
    G13151338Courtesy of MAZDA MOTORS CORP.
  4. Remove the clip from the body.
