Continuity Inspection: Notes

Verify that the CPP switch is installed properly. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION [C66M-R].)
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Disconnect the CPP switch connector.

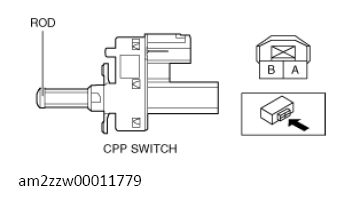

Verify that the continuity between CPP switch terminals A and B when the clutch pedal is depressed and when it is released is according to the following table:

Courtesy of MAZDA MOTORS CORP.
- If not as verified, replace the CPP switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION [C66M-R].)
