Center Accessory Socket Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)

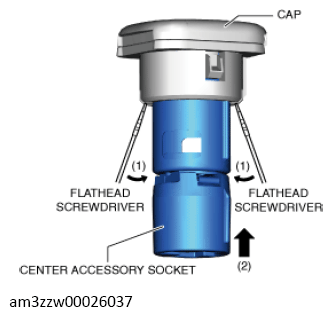

Insert a tape-wrapped flathead screwdriver into the gap between the cap tabs and center accessory socket.

Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of the arrows (1) shown in the illustration, and press the center accessory socket in the direction of the arrow (2) shown in the illustration to detach the cap tabs from the socket.

Courtesy of MAZDA MOTORS CORP.
Pull the center accessory socket in the direction of the arrow shown in the illustration and remove it.

Courtesy of MAZDA MOTORS CORP.
While pressing the cap tabs in the direction of arrows (1) shown in the illustration, press the cap in the direction of arrow (2) shown in the illustration to detach the cap tabs from the console-up.

Courtesy of MAZDA MOTORS CORP.
Remove the cap.
Install in the reverse order of removal.
