Details On DTCs

DTC U0322:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Body control module (BCM) error

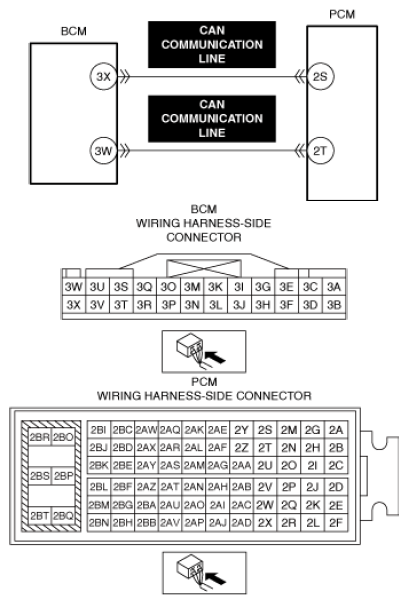

Detection condition	Determination conditions	When any of the following conditions is met: CAN communication line malfunction between body control module (BCM) and PCM Body control module (BCM) internal malfunction
	Preconditions	The following conditions continue for 1.5 s: Battery voltage: above 9.45 V¹ Switch the ignition ON (engine off or on) ^1 : Standard can be verified by displaying PIDs using M-MDS
	Malfunction determination period	2 s period
	Drive cycle	1
	Self test type	CMDTC self test, KOEO self test, KOER self test
	Sensor used	PCM
Fail-safe function	Not applicable
Vehicle status when DTCs are output	Not applicable
Possible cause	CAN drive error (body control module (BCM) or PCM) CAN communication line malfunction between body control module (BCM) and PCM Body control module (BCM) connector or terminals malfunction PCM connector or terminals malfunction Body control module (BCM) malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
