DTC U060F-00: Sent Communication: Communication Error Between MAF Sensor/IAT Sensor No. 1 And Pcm: Outline

DTC U060F:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

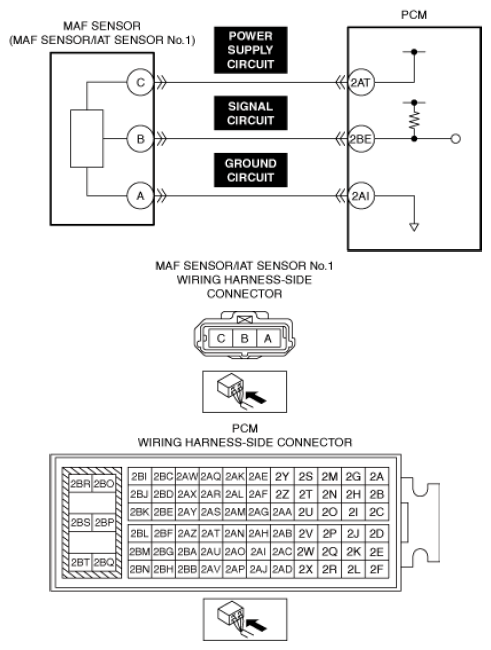

System malfunction location	SENT communication: Communication error between MAF sensor/IAT sensor No. 1 and PCM
Detection condition	When any of the following conditions is met: SENT communication line malfunction between MAF sensor/IAT sensor No. 1 and PCM The PCM detected a SENT communication type communication error from the MAF sensor/IAT sensor No. 1.
Fail-safe	Not applicable
Possible cause	SENT communication line error between MAF sensor/IAT sensor No. 1 and PCM MAF sensor/IAT sensor No. 1 connector or terminals malfunction PCM connector or terminals malfunction Open circuit in any of the following MAF sensor/IAT sensor No. 1 circuits. Power supply circuit Signal circuit Ground circuit Short to ground in any of the following MAF sensor/IAT sensor No. 1 circuits. Power supply circuit Signal circuit Ground circuit Short to power supply in any of the following MAF sensor/IAT sensor No. 1 circuits. Power supply circuit Signal circuit Ground circuit Short circuit between any of the following MAF sensor/IAT sensor No. 1 circuits. Power supply circuit Signal circuit Ground circuit MAF sensor/IAT sensor No. 1 malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
