Setting method by operation of remote transmitter button

• The following setting can be changed by operation of the remote transmitter button.

SETTING METHOD BY OPERATION OF REMOTE TRANSMITTER BUTTON

Function	Initial setting	Setting content	Control unit
2-step unlocking function.(1)	ON	OFF/ON	Start stop unit
(1) With 2-step unlocking function.

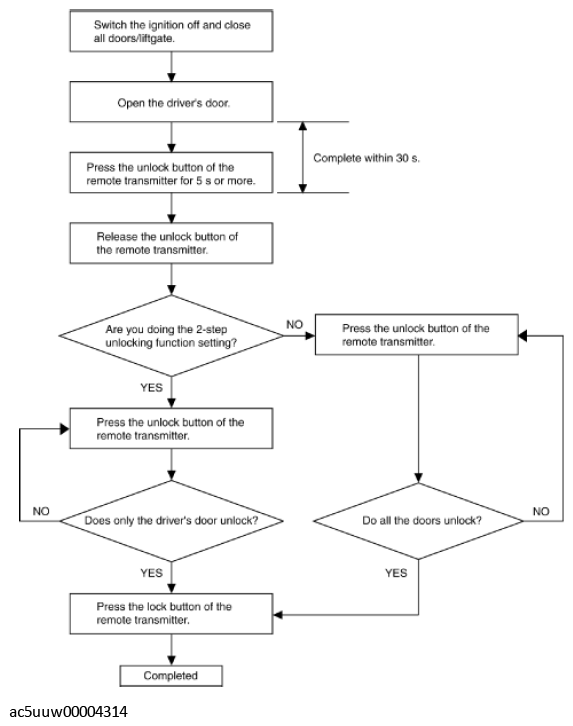

• Change the setting for the 2-step unlocking function referring to the following procedure:

NOTE:

• If any of the following conditions is met during procedure, the setting for changing the 2-step unlocking function is finished.

• The ignition is switched to ACC or ON (engine off or on).
• The driver's door is closed.
• The liftgate is open.
• The remote transmitter operation is not performed for approx. 10 s.
• The lock button on the remote transmitter is pressed.
• A request switch is pressed.

Courtesy of MAZDA MOTORS CORP.
