Clock Spring Inspection [Two-Step Deployment Control System]

1. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)

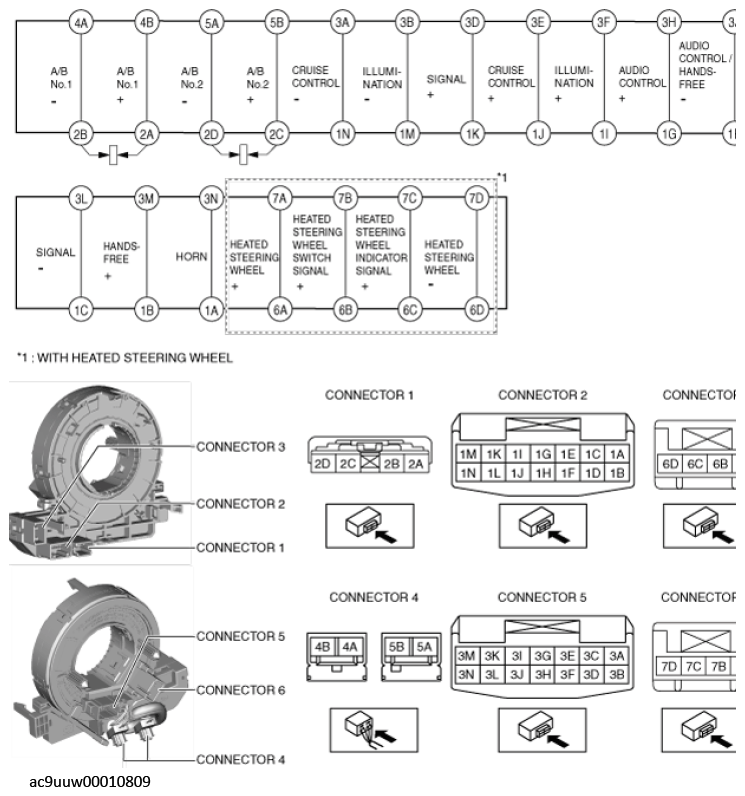

3. Verify that the continuity is as indicated in the table.
   • If not as indicated in the table, replace the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
     NOTE:

     • When the vehicle-side connector for the clock spring is disconnected, terminals 2A, 2B, 2C and 2D are shorted to prevent unexpected operation (deployment) of the air bag module.
