DTC B131C-12: Walk-In Actuator (LH) Circuit Malfunction [Rear One-Touch Walk-In Control Module]: Notes

DTC B131C:12 (REAR ONE-TOUCH WALK-IN CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Walk-in actuator (LH) circuit malfunction
Detection condition	Rear one-touch walk-in control module detects a short to power supply in the walk-in actuator (LH) circuit.
Fail-safe	Not applicable

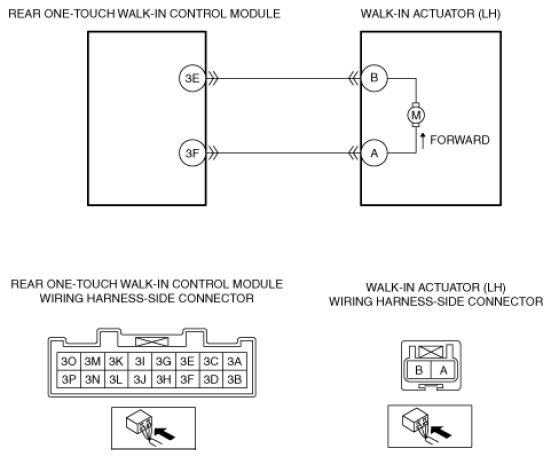

Possible cause	Walk-in actuator (LH) connector or terminal malfunction Rear one-touch walk-in control module connector or terminal malfunction Short to power supply in wiring harness between the following terminals: Rear one-touch walk-in control module terminal 3E-Walk-in actuator (LH) terminal B Rear one-touch walk-in control module terminal 3F-Walk-in actuator (LH) terminal A Walk-in actuator (LH) malfunction Rear one-touch walk-in control module malfunction
Courtesy of MAZDA MOTORS CORP.
