Liftgate Opener Switch Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the liftgate opener switch. (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .)

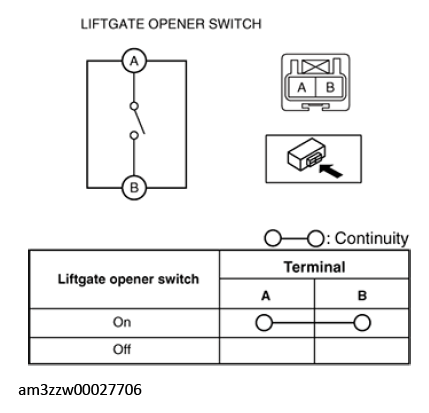

  3. Verify the continuity of liftgate opener switch terminals A and B.
    G13179104Courtesy of MAZDA MOTORS CORP.
