Continuity Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the Push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)

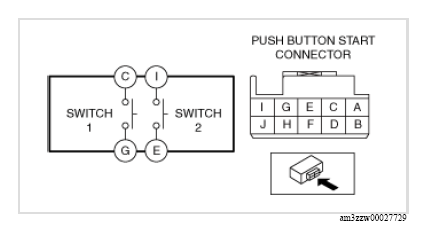

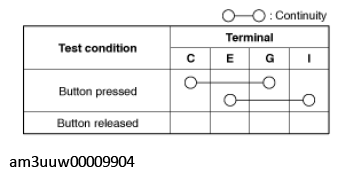

Verify that the continuity between the push button start terminals is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
