Touch Sensor Removal/Installation

NOTE:

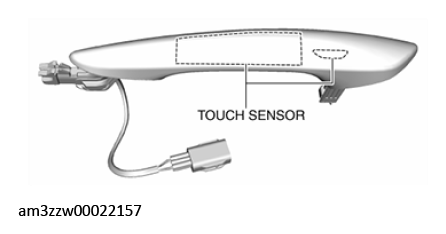

The touch sensor cannot be removed as a single unit because it is built into the front outer handle. To replace the touch sensor, replace the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)

Courtesy of MAZDA MOTORS CORP.
