Power cut switch

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

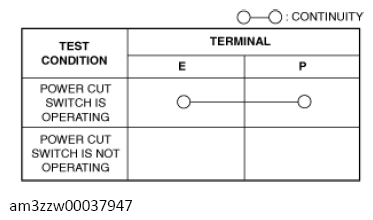

  3. Verify that the continuity between the power window main switch terminals is as indicated in the table.
    G13560081Courtesy of MAZDA MOTORS CORP.

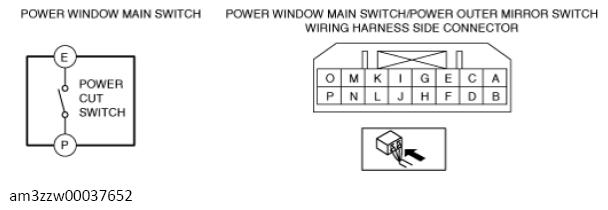

    G13560082Courtesy of MAZDA MOTORS CORP.
