Operational Inspection: Notes
- Switch the ignition ON (engine off or on).
- Move the vehicle to a place with a showroom level of brightness.

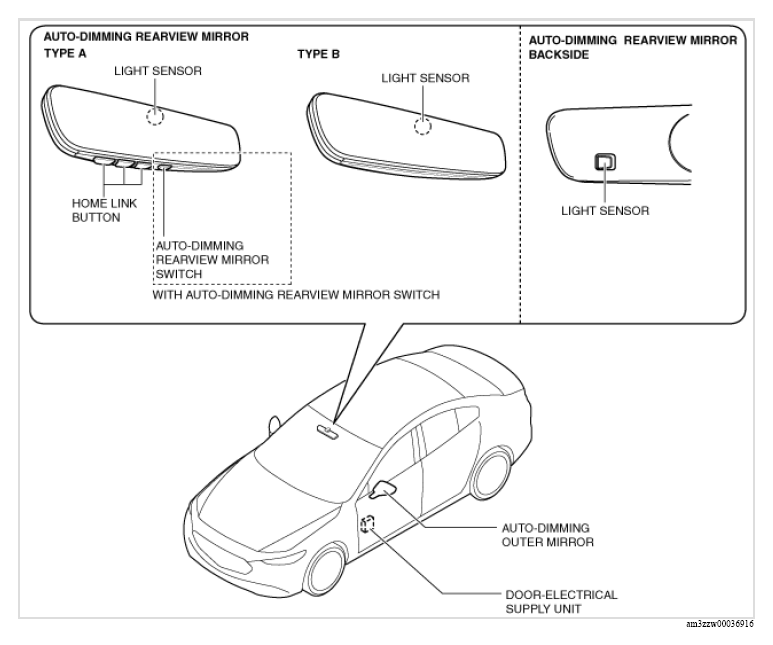

- Verify that the indicator light is illuminated.
 Courtesy of MAZDA MOTORS CORP.
|
- Verify that the indicator light switches when the auto-dimming mirror on/off switch is pressed.
- While the indicator light is illuminated, verify that the mirror surface brightens.
- Cover the front light sensor with a hand and verify that the mirror surface darkens when light is shone on the rear light sensor.
- Remove your hand covering the front light sensor and verify that the mirror surface brightens.
