Selection switch indicator
- Disconnect the negative battery terminal.
- Perform the following procedure.

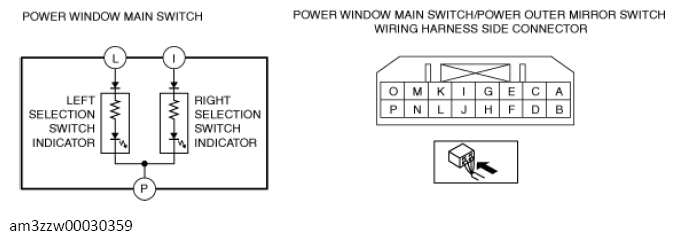

- Left selection switch indicator: Apply battery positive voltage to power window main switch terminal L, and connect terminal P to ground.
- Right selection switch indicator: Apply battery positive voltage to power window main switch terminal I, and connect terminal P to ground.
 Courtesy of MAZDA MOTORS CORP.
|
- Verify that the LED is turned on.
